CE TOOLING DIAGONAL SIZE OF SHAPES

MAXIMUM STATION RANGE

How far can we extend the station range when a customer asks to put tool with an across corners over the range listed for that station?   Example: On an AT tool, .200 X 2.000 RT.  The diagonal (across corners) measurement is 2.010  This officially puts the tool into a 3½” Sta. D range 2.001-3.500.   If the customer comes back and asks if we can push the tool down into a 2”  Sta. C, look to the below charge to find out if it is possible.  Note: even if tool size fits into the allowable oversize amount, we still must warn customer that buy pushing the station range, the corners of the punch may be slightly broke or radiused.

All tool styles and stations not listed bellow can be extended +014

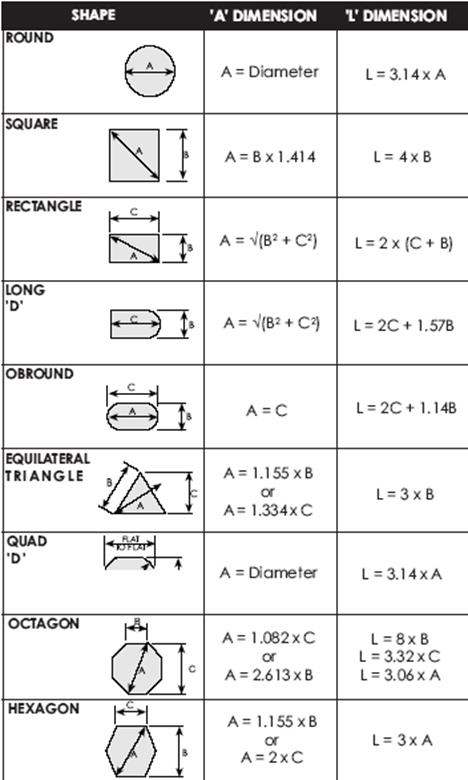

Find the largest shape to fit in a tool station.

Take Station Max. (Ex.114 Station C  Maximum Station Size/Diagonal=1.500” =Max. A=1.500”

Find largest Square A div. 1.414    HX=Hexagon A div. 1.155      OC=Octagon =A div. 2.613   Equal Lateral=AA div. 1.155       Find Maximum  Length of a Rrectangle=£ (A2 -Width2)=



TOOL STYLE

STATION

Max. Extend +___ amount past Std Sta. Range

Strippit Fab

 C=1¼”

 D=3½”

.014, or up to +.054 if Oversize Unit ordered, ref. P2-8 extra costs

.014, or with spec. blk (+$75) up to +.200 (only .2 of tip is usable)

THICK or THIN

Sta. A

.014

Sta. B

.014 But Corners will have .008” Radius as Punch Tip must fit into 1.250”/31.75mm ID of GUIDE

 C=2”

 D=3½” & E=4½”

+.008 or with spec. blk we can go +.15/3.8mm for .36 tip length which sits in stripper plate area. +$90.

+.02, or with spec. blk we can go +.15 for .36 tip length which sits in stripper plate area. +$120.

Sta. F

+.008 or with spec. blk we can go +.2”/5mm for .36 tip length which sits in stripper plate area. +$120.

WHITNEY ROPER

 All

+0,  their is no reason customer. needs to push sta., hold to sta. range for pricing of  all punches.

Murata Wiedemann 112, 114



  All Station.

 +.02
